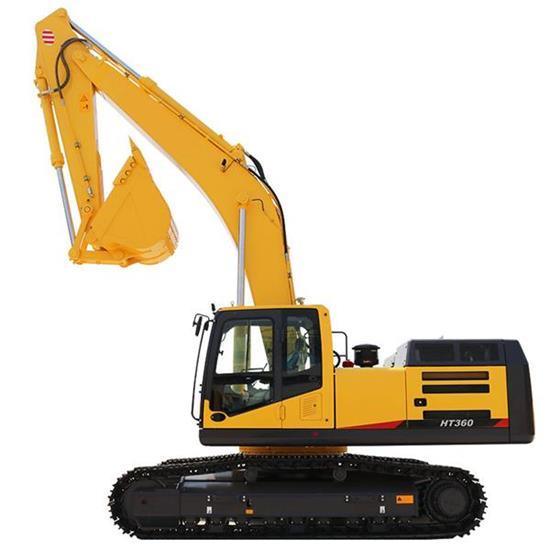

HT360 Large Excavator

Name: HT360 Large Excavator
Brand: Shandong Hightop Group
SKU: HT360
Availability: InStock

Menşe yeri	ÇİN
Marka adı	Hightop
Sertifika	CE，EPA，ISO，TUV
Model numarası	HT360

Ürün Ayrıntıları

Ürün adı:

HT360 Ekskavatör

Toplam ağırlık:

36T

Topraklama uzunluğunu takip et:

4030mm

Track uzunluğu:

4945 mm

Vurgulamak:

36t Total Weight Large Excavator

Cummins QSC8.9 Engine HT360 Excavator

1.6-1.8m³ Bucket Capacity Hightop Mini Excavator

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1 set

Ambalaj bilgileri

Ahşap kasa

Teslim süresi

5-14 iş günü

Ödeme koşulları

L/C, D/P, D/A, T/T, Western Union, MoneyGram

Yetenek temini

Ayda 100 Set

Ürün Tanımı

HT360 Large Excavator

Product Overview

The HT360 Large Excavator is a 36-ton heavy-duty machine engineered for optimal performance in demanding work environments. With its robust construction and advanced hydraulic system, it delivers exceptional digging power and operational efficiency.

Key Features

Powerful Engine: Cummins QSC8.9 engine delivering 242 kW at 2000 rpm
High-Performance Hydraulics: K5V160DT hydraulic pump with maximum flow of 270×2+30 L/min
Exceptional Digging Capacity: Bucket capacity of 1.6-1.8m³ with digging force of 245kN
Superior Stability: 600mm-wide track plates with ground pressure of 70.8kPa
Extended Operation: 650L fuel tank and 310L hydraulic oil tank for continuous work

Performance Specifications

Maximum digging height: 10,200mm
Maximum digging depth: 7,370mm
Maximum dumping height: 7,135mm
Gradeability: 35°
Travel speeds: 6.2/4 km/h
Swing speed: 8.2 r/min

Technical Specifications

Parameter	Value	Parameter	Value
Model	HT360	Track grounding length	4030mm
Total Weight	36t	Track length	4945mm
Bucket capacity	1.6-1.8m³	Rail gauge	2590mm
Engine model	Cummins QSC8.9	Track width	3190mm
Rated power	242kw/2000r/min	Track shoe width	600mm
Fuel tank volume	650L	Turntable width	2995mm
Walking speed	6.2/4km/h	Distance from center of rotation to rear end	3525mm
Swing speed	8.2r/min	Track tooth thickness	30mm

Dimensions

Dimension	Value
Total length	11,187mm
Overall width	3,190mm
Total height (boom top)	3,180mm
Overall height (top of cab)	3,165mm
Minimum ground clearance	498mm
Tail turning radius	3,525mm
