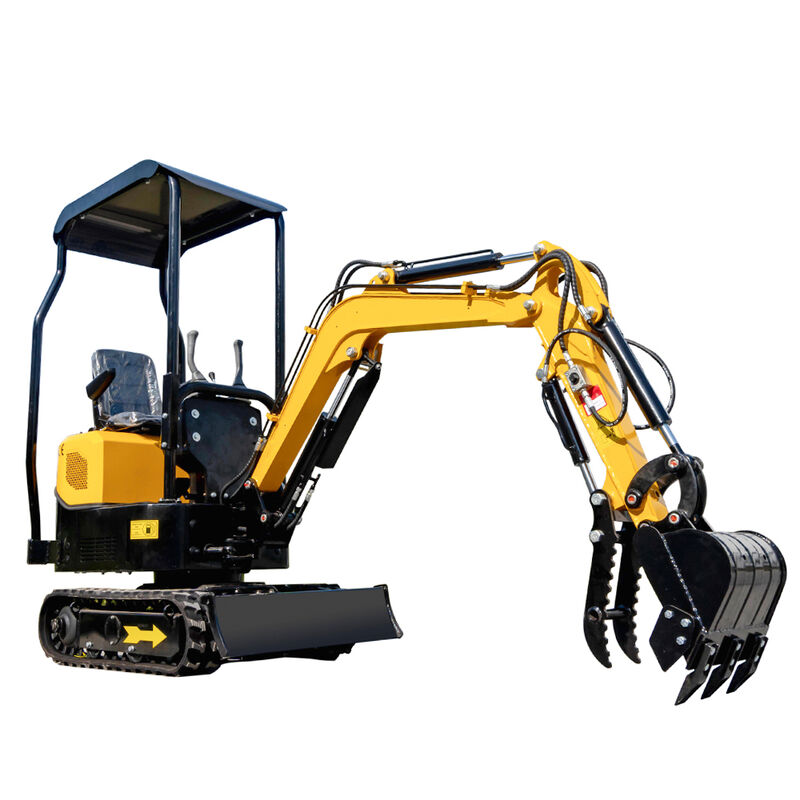

HT-10CZ 1000kg Crawler Mini Excavator

Name: HT-10CZ 1000kg Crawler Mini Excavator
Brand: Shandong Hightop Group
SKU: HT-10CZ
Availability: InStock

Menşe yeri	Çin
Marka adı	Hightop
Sertifika	CE，EPA，ISO，TUV
Model numarası	HT-10CZ

Ürün Ayrıntıları

Modeli:

HT10CZ

Ağırlık:

1000kg

Kazma Kovası Kapasitesi:

0,025 metreküp/120kg

Motor:

KOOP（192F)

Vurgulamak:

360 Degree Rotation Mini Excavator

1000kg Compact Excavator

Hydraulic System Crawler Mini Excavator

Ödeme ve Gönderim Koşulları

Fiyat

CE，EPA，ISO，TUV

Ambalaj bilgileri

Tahta Sandık

Teslim süresi

5-14 iş günü

Ödeme koşulları

L/C,T/T,D/P,D/A,Western Union

Yetenek temini

Ayda 100 Set

Ürün Tanımı

HT-10CZ Mini Excavator

The HT10CZ hydraulic crawler mini excavator features a BRIGGS & STRATTON engine, delivering superior power with energy efficiency. Available with optional boom deflection, telescopic track, and closed cab configurations. Choose from multiple color options including yellow, red, blue, white, or black, with full customization support. Certified with EPA, Euro 5, CE, and ISO standards.

Key Features

Accessible rear cover design for easy maintenance and refueling
360-degree zero-tail swing capability for enhanced maneuverability
Bailiton engine compliant with U.S. EPA environmental requirements
Versatile bucket system compatible with multiple attachments including sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, and crushing hammer
Red flexible coupling for effective shock absorption
High-precision filtration system with 1μm precision and 99.9% filtration rate
Integrated oil pressure alarm system for machine protection
Advanced heat dissipation system with sealed exhaust fan
Travel motor pressure relief system for extended component life
Stabilizing and balancing system with thickened four-legged roof structure

Technical Specifications

Model	HT10CZ
Weight	1000kg
Digging Bucket Capacity	0.025cbm/120kg
Bucket Width	380mm
Engine	KOOP(192F)
Optional Engine	BRIGGS & STRATTON YANMAR
Bore Stroke	Single cylinder, fan cool
Rated Power	7kw/3000r/min
Main Pump	G5-6
Displacement	6.8ml/r
Swing Motor	SANYANG (BMRS-250)
Traveling Motor	SANYANG (BMT-245)
Travel Speed	1.5km/h

Main Dimensions

*Overall Dimension (LWH)*	2775 * 930 * 2219 mm
Wheelbase	910 mm
Total Length of Track	1230 mm
Platform Ground Clearance	380 mm
Platform Back Turning Radius	784 mm
Chassis Width	896 mm
Track Width	180 mm
Chassis Ground Clearance	132 mm
Track Height	320 mm
