HT06 Mini Excavator 600kg Operating Weight

Menşe yeri	Çin
Marka adı	Hightop
Sertifika	CE，EPA，ISO，TUV
Model numarası	HT-06

Ürün Ayrıntıları

Genel uzunluk A:

1889 mm

Maksimum kazma yüksekliği a:

2017 mm

Toplam genişlik B:

mavi olmayan/siyah/gri/istediğiniz gibi

Maks. minimum dönüş yarıçapındaki yükseklik b:

1589 mm

Vurgulamak:

600kg Operating Weight Mini Excavator

2017mm Max Digging Height Compact Excavator

650mm Tail Turning Radius Mini Digger

Ödeme ve Gönderim Koşulları

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union

Yetenek temini

Ayda 100 takım

Ürün Tanımı

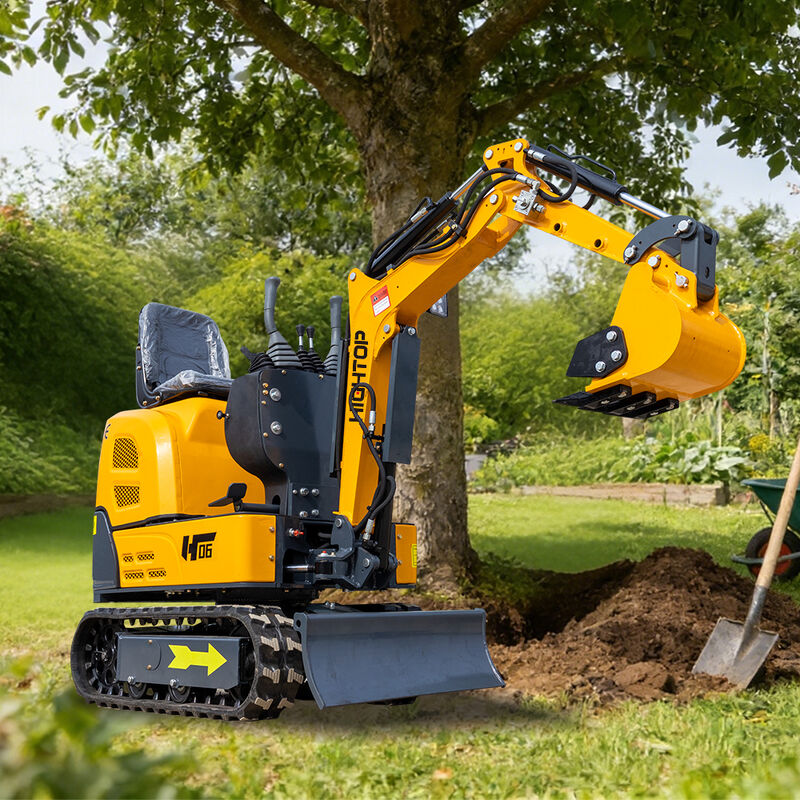

HT06 Mini Excavator

Compact and powerful, the HT06 600kg mini excavator delivers exceptional performance in confined spaces while maintaining robust capabilities for diverse applications.

Compact Design for Maximum Maneuverability

Overall transport dimensions: 1,889 mm length * 700 mm width * 2,086 mm height
Accesses confined spaces including indoor areas, gardens, and basements
650 mm rear turning radius prevents collisions during precision operations

Versatile Performance Across Applications

Maximum digging height: 2,017 mm | Maximum digging depth: 1,118 mm | Maximum digging reach: 2,025 mm
Maximum dumping height: 1,284 mm | Minimum swing radius: 1,239 mm
30° climbing ability handles construction site ramps and garden steps

Lightweight and Portable Operation

600 kg operating weight transports easily with standard pick-up trucks
Reduces transport costs and simplifies site relocation
0.01 m³ bucket capacity provides precise material control

Robust and Reliable Construction

Runtong R300 or Briggs & Stratton engine for stable power and fuel efficiency
Tengfei main valve ensures precise hydraulic control and rapid response
High-quality pins with excellent wear resistance extend service life

Operational Efficiency Features

Dozer blade clearance: 92 mm | Digging depth: 93 mm
150 mm standard track plate width with low ground pressure
Track contact length: 782 mm | Track length: 1,126 mm for stable travel

Flexible Configuration Options

Choose rear-view mirror and canopy configurations to match your working environment. Remove canopy for indoor precision work or add rain cover for outdoor comfort.

Technical Specifications

Overall Length (A)	1,889 mm
Max Digging Height (a)	2,017 mm
Overall Width (B)	700 mm
Max Height at Minimum Turning Radius (b)	1,589 mm
Upper Width (D)	700 mm
Max Digging Depth (c)	1,118 mm
Overall Height (C)	2,086 mm
Max Digging Distance (d)	2,025 mm
Standard Track Shoe Width (F)	150 mm
Minimum Turning Radius (e)	1,239 mm
Track Gauge (E)	550 mm
Max Unloading Height (f)	1,284 mm
Shovel Height Above Ground (G)	92 mm
Working Weight	600 kg
Depth of Excavation of Bulldozer (H)	93 mm
Bucket Capacity	0.01 m³
Tail Turning Radius (I)	650 mm
Working Device Form	Backhoe
Track Ground Length (J)	782 mm
Gradeability	30°
Track Length (K)	1,126 mm
Main Valve	Tengfei
