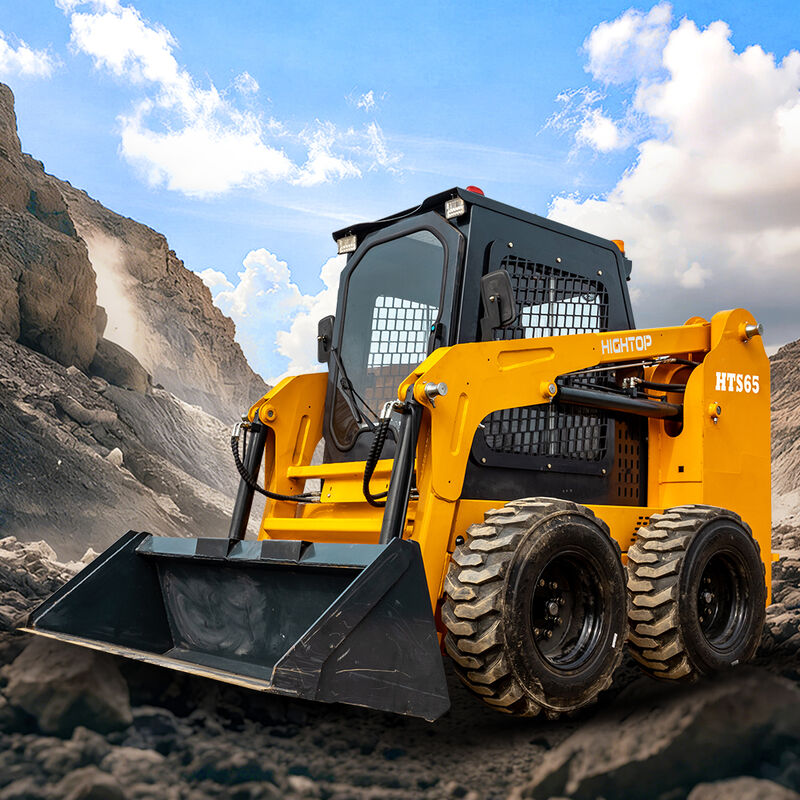

HTS65 Skid Steer Loader

Name: HTS65 Skid Steer Loader
Brand: Shandong Hightop Group
SKU: HTS65
Availability: InStock

Menşe yeri	Çin
Marka adı	Hightop
Sertifika	CE，EPA，ISO，TUV
Model numarası	HTS65

Ürün Ayrıntıları

Nominal Yük:

900kg

Maksimum sürüş hızı:

12 km/s

hidrolik akış:

75L/dak

Yüksek akışlı sistemin akış hızı:

İsteğe bağlı

Ödeme ve Gönderim Koşulları

Teslim süresi

5-8 iş günü

Ödeme koşulları

D/A,L/C,D/P,T/T,Western Union

Yetenek temini

Ayda 100 takım

Ürün Tanımı

HTS65 Skid Steer Loader

The HTS65 Skid Steer Loader is a compact, high-performance machine powered by a reliable Yanmar 4TNV98C 49.9kW engine. With a 900kg rated load capacity, 0.5m³ bucket capacity, and maximum speed of 12km/h, this loader delivers exceptional performance in confined spaces and rugged terrain. The 75L/min hydraulic system, zero-turn maneuverability, and universal attachment compatibility make it ideal for construction, agriculture, landscaping, and municipal projects.

Key Specifications

Specification	Value
Rated load	900kg
Maximum driving speed	12Km/h
Hydraulic flow	75L/min
Flow rate of high-flow system	Optional
Tire model	12-16.5
Rated power	4TNV98C 49.9kw (Yanmar 4TNV98C 49.9kw)
Fuel tank capacity	80L
Operating weight	3450kg
Bucket capacity	0.5m³

Detailed Dimensions

Dimension	Value (mm)
Overall operating height	3990
Height to bucket hinge pin	3090
Height to top of cab	2140
Without bucket length	2875
Overall length with bucket	3570
Dumping height	2370
Dumping reach	675
Wheelbase	1095
Ground clearance	25
Front turning radius without bucket	1375
Front tuning radius	2100
Rear tuning radius	1750
Rear axle to bumper	1140
Tread width	1575
Width	1880
Bucket width	1880
